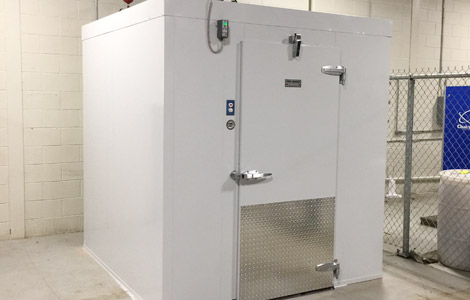

Walk in Cooler/Freezer

Walk in Cooler/ Freezer

• Over 10 years we are manufacturing panels and doors for walk in Cooler/Freezer according to the customer specific dimensions.
• Our Walk Ins are made of Polyurethane insulated panels.
• Wall and ceiling panels comes with cam lock system.
• Cool master is equipped with high flexible manufacturing systems to built custom box within the stipulated time.

Attributes:

• Our camlock comes with gasketed fastener. Easy to install
• Hinge Doors, Sliding Doors, Bi- Parting Door, Pallet door.
• Exterior Ramp/ Interior Ramp available
• Configurate box as Combo with different options.
• Glass Door
• Indoor/ Outdoor Refrigeration unit/ Penthouse unit

Dimension:

• Thickness: 4” and 5” Available
• Width and length can be customized as per the customer requirement.
• Height- Maximum 24’ (Camlock Panels) or Upto 50′ (Continous Panels)

Finishes:

• White 26 Ga G-90 Pre paint Galvanized (Standard)
• 24 Ga Stainless steel
• 26 Ga Black Polyster

Services:

• Delivery and installation
• Technical Support
• After sale services

Fire Rated:

Ask us about using fire-rated panels for your walk-in coolers and freezers.

As per the Building Code Act section 3.1.5.5A, CAN/ULC-S138 approved panels must be used for walk-in coolers and freezers. Our panels are certified fire rated by Intertek. Additional information regarding certification can be found here: https://bpdirectory.intertek.com/pages/DLP_SearchDetail.aspx?SpecID=56321

Floor:

• Finish – 18 Ga G-90 Galvanized Steel (Standard), Stainless Steel available.
• Reinforced floor available (¾” Plywood)
• 1/16”,1/8”,3/16”,1/4” Aluminum Checker plate (Non slippery) available
• Floor spacers for better ventilation.

R-value Specs:

Our panels meet the required R values. Our R-Value details can be found listed with NRCan:
https://oee.rncan.gc.ca/pml-lmp/index.cfm?action=app.search-recherche&appliance=WICF_PANELS
